Lunar Recessed

Product Item : Lunar Recessed
- A strong family with various installation ways: Recessed/Surface Mounted/Pendant
- Wide range from diameter 40cm to 120 cm
- 5 Years Warranty; CE, RoHS2.0, REACH approval
- Easy and fast installation, saving installation cost
Product description：Lunar - Cyanlite architectural LED round panel light recessed installation
Inquiry

Cyanlite Architectural LED Round Panel Light - LUNAR Recessed

Cyanlite Lunar series architectural LED rounal panel lights

The Cyanlite™ round panel light Lunar series are stylish designed backlite luminaires, with a wide range from diameter 30cm to 120cm. Lunar floats below the ceiling like a moon. With its uniform, glare-free light and modern, purist design this series of round luminaires lends any room a special look, and is ideal for e.g. creative zones, VDU workstations and prestigious sales spaces.

The standard Lunar comes with Surface Mounted installation kit, and you can have it Pendant installed with optional suspension wire kit or stem mounting kit. Besides this, Lunar series also has Recessed version and Trimless Recessed version to meet different requirements of architects and projects.

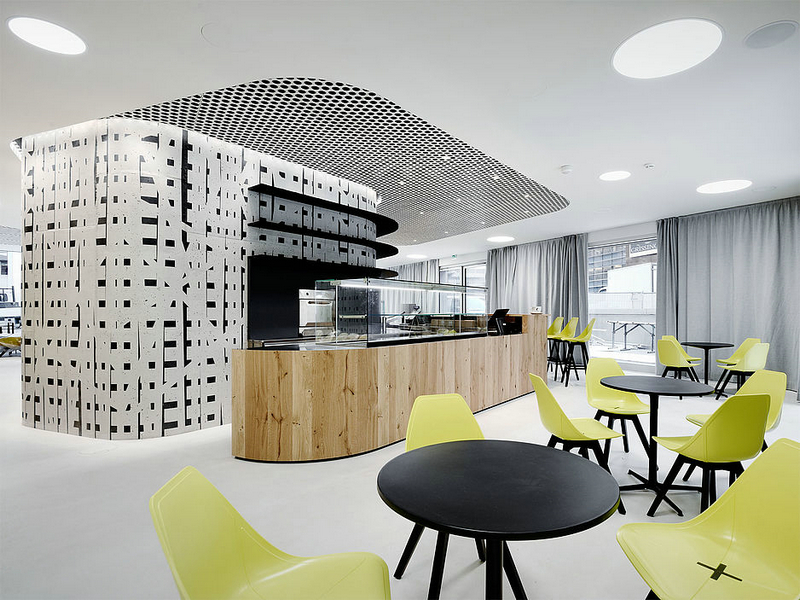

Cyanlite Lunar architectural LED round panel recessed intallation

• Advantages

- A strong family with various installation ways: Recessed/Surface Mounted/Pendant

- Easy and fast installation, saving installation cost

- Lunar has a wide product range with down light only and direct/indirect light options (up/down version not available for recessed models)

- Flexible and customization oriented, bespoke specification are welcome

- Professional LED lighting manufacturer, ODM for EU top lighting brands, no risk for partnership

• Features

l Standard sizes (mm): ⌀300/ ⌀400/ ⌀480/ ⌀600/ ⌀900/ ⌀1200 (mm)

l RAL9016 as standard, other RAL colors available on request

l Range of color temperatures 3000K, 3500K, 4000K, 5000K & 6000K

l 5 Years Warranty

l Various dimming options, including 0-10V, DALI, Switch Dim etc.

l Emergency options available

• Specifications

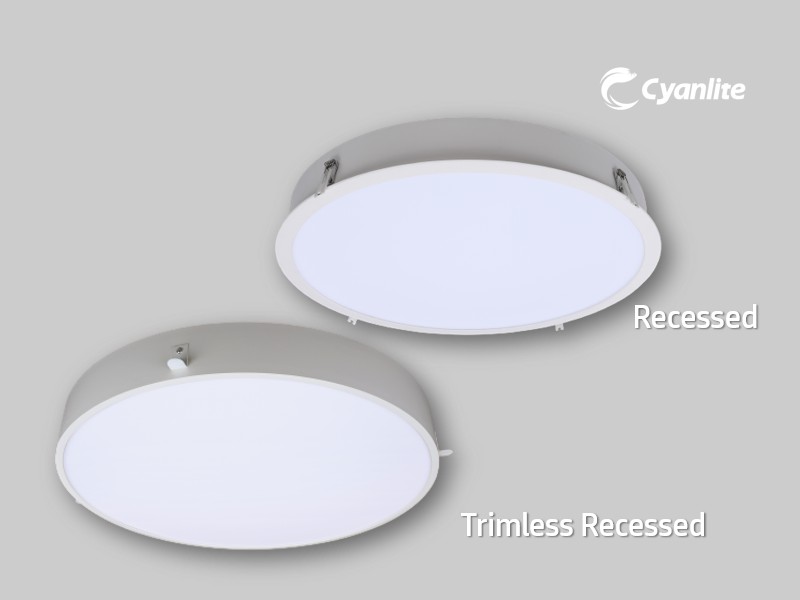

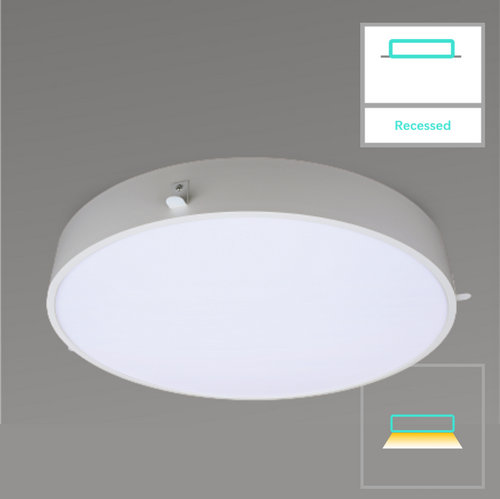

Cyanlite Lunar Trimless Recessed

Trimless Recessed Model

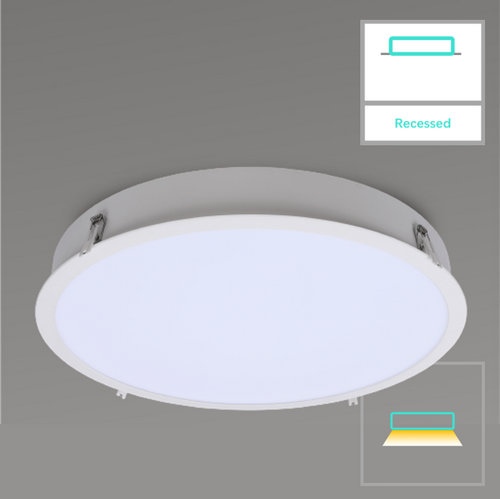

Cyanlite Lunar Recessed

Recessed Model

Model	Part No.	Power	Luminous Flux	Dimension (mm)
Model	Part No.	Power	Luminous Flux	Dimension (mm)
D30TR	BR15WD30TR	15W	1275 lm	⌀300x65 cut-out:⌀310
D40TR	BR20WD40TR	20W	1700 lm	⌀400x65 cut-out:⌀410
D50TR	BR25WD50TR	25W	2125 lm	⌀480x95 cut-out:⌀490
D60TR	BR40WD60TR	40W	3400 lm	⌀600x95 cut-out:⌀610
D90TR	BR90WD90TR	90W	7650 lm	⌀900x95 cut-out:⌀910
D120TR	BRH5WDH2TR	150W	12750 lm	⌀1200x95 cut-out:⌀1210
D50R	BR25WD50R	25W	2125 lm	⌀510x95 cut-out:⌀495
D60R	BR40WD60R	40W	3400 lm	⌀630x95 cut-out:⌀615
D90R	BR90WD90R	90W	7650 lm	⌀930x95 cut-out:⌀915
D120R	BRH5WDH2R	150W	12750 lm	⌀1230x95 cut-out:⌀1215
